021-64195798美国uvp公司生产的B-100AP高强度紫外灯为100W长波紫外线灯,高强度抗冲击外壳由有Cool-Touch阻热材料制造,可长时间工作不产生高温。B-100AP高强度紫外线灯-100瓦365nm紫外灯,其独特的设计可以应用在汽车行业中,用来检测发动机泄露,GFP荧光检测,矿物学研究等也有应用。B-100AP高强度紫外灯订货编号:95-0127-01(110v),95-0127-02(220v)
INTRODUCTION

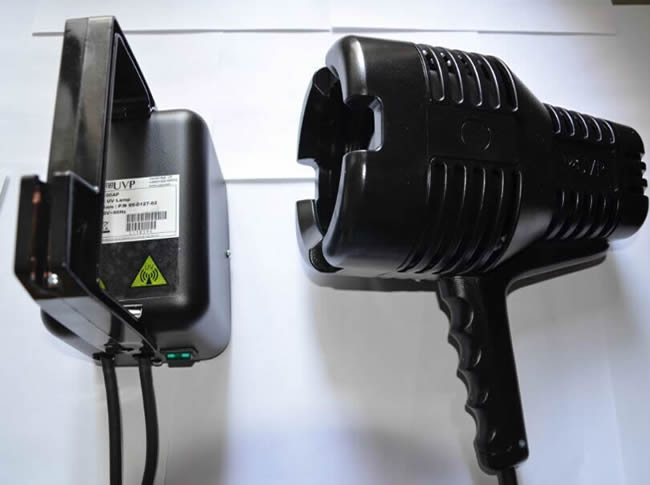

B-100AP高强度紫外线灯是美国美国UVP公司生产的一款便携式高强度黑光灯。美国UVP公司被德国AnalytikJena公司收购后现在为AnalytikJena Blak-Ray B-100A UV Lamp。美国uvp公司生产的B-100AP高强度紫外灯为100W长波紫外线灯,高强度抗冲击外壳由有Cool-Touch阻热材料制造,可长时间工作不产生高温。B-100AP高强度紫外线灯-100瓦365nm紫外灯,其独特的设计可以应用在汽车行业中,用来检测发动机泄露,GFP荧光检测,矿物学研究等也有应用。
B-100AP系列高强度紫外灯为100W长波紫外线灯,高强度抗冲击外壳由有Cool-Touch阻热材料制造,可长时间工作不产生高温。
B-100AP高强度紫外线灯-100瓦365nm紫外灯,其独特的设计可以应用在汽车行业中,用来检测设计漏洞,在线路搭乘制造,矿物学研究等也有应用。
• 功率为100W
• 在380mm处紫外线强度为5,000uW/cm2
• 灯泡的寿命约为500小时。
• 灯头连接到镇流器(除B-100SP)允许灯头360°旋转
• 在457mm距离处,可产生大约直径127mm的高强度紫外光斑
B-100系列灯有多种型号选择:所有“P”系列灯都具有Cool-Touch阻热材料外壳,没有高温产生,无论使用多长时间灯头温度可以手持,可以面朝下放置在工作台也不会损坏。非“P”系列的是铝合金外壳。
B-100AP型号的特点为100瓦长波紫外线灯,Cool-Touch阻热外壳。在457mm距离处,可产生大约直径127mm的高强度紫外光斑,灯头可旋转360度,2.4米的电源线。为增加流动性,可选择B-100AP/R包括6.1米长的电源线。B-100AP被广泛的应用在无损检测和荧光检测。
B-100A和A-100AR
B-100A的特点为100W的长波紫外线灯,B-100A防刮铝合金外壳,2.4米电源线。为了增加流动性,选择B-100AR包括6.1米长的电源线。应用非破坏性测试和荧光检测。
型号描述货号
B-100A100W,高强度长波紫外灯,230V, 95-0044-02
B-100A/R100W,高强度长波紫外灯,6.1米电源线,115V, 95-0044-04
B-100AP100W,高强度长波紫外灯,Cool-Touch阻热外壳,230V, 95-0127-02
B-100AP/R100W,高强度长波紫外灯,Cool-Touch阻热外壳,6.1米电源线,230V, 95-0127-07
B-100SP140W,高强度长波紫外灯,Cool-Touch阻热外壳,115VN/A
B-100Y100W,高强度表面晶粒检查灯,黄光,230V, 95-0044-18
B-100YP100W,高强度表面晶粒检查灯,Cool-Touch阻热外壳,黄光,115V, 95-0127-04
货号 |
描述 |
89-0068-01 |
Finger Guard for B-100AP, B-100AP/R |
19-0126-01 |
Lamp Funnel for B-100AP, B-100AP/R, B-100SP |
19-0125-01 |
B-100AP, B-100AP/R, B-100SP灯罩 |
19-0124-01 |
B-100A, B-100AR灯罩 |
76-0055-01 |
B-100AP, B-100AP/R, B-100YP, B-100SP曝光盒 |
19-0158-01 |
Lamp Guard B-100A, B-100AR |
34-0054-01 |
100W备用灯泡 |
34-0049-01 |
Bulb, Self Ballasted B-100SP |
38-0009-02 |
Filter for B-100Y and B-100YP |
1.B-100AP高强度紫外灯无法开启怎么办?
更换灯泡,如果更换灯泡仍然无法启动,请检查电源线是否破损,用数字万用表测量电源插头到主机箱接头是否导通,如果线路没有问题,那就需要更换启动变压器。
2.如何更换B-100AP灯泡?
更换灯泡时请务必先关闭电源,将电源线从插座拔下,等灯头表面温度降低到常温时才可以操作。用双手将B-100ap灯头保护罩上2个黑色按钮按下,取下保护罩,然后按压灯头两边的按钮,取下滤光片,用手轻轻逆时针旋下灯泡,因此100w灯泡为高压汞灯,里面含有大量金属汞,切勿将废弃的灯泡随意丢弃,请将灯泡按照有害垃圾交给相关企业回收处理。
3. B-100AP启动变压器损害了怎么办?
如果确定启动变压器损坏,请将主机和灯头一起快递到我公司的售后维修部,我公司收到后会先做一个维修评估,评估报告经您确认后,我们大约7-10天维修好。
4. B-100AP滤色片破裂了还能继续使用吗?
B-100AP紫外线灯的滤色片是将320nm以下和400nm以上的波段过滤掉,如果破裂了会有短波UVC和中波UVB波段的紫外线辐照出来,对照射的物体和操作人员都有危害,所以,如果发现滤色片破损,请及时更换滤色片。
5. B-100AP高强度紫外线灯为什么启动那么慢?
B-100AP为高压汞灯,高压汞灯启动时间为5-10分钟,关闭后如果再启动仍然需要再等待5-10分钟,请勿频繁开关机。
6. 在哪可以购买到B-100AP的紫外线灯泡和滤色片?
如果需要B-100AP的紫外线灯泡和滤色片,请联系上海路阳生物技术有限公司的销售客服。
7.操作B-100AP的紫外线灯需要注意什么?
B-100AP的紫外线灯为高强度紫外线灯,因强烈紫外线人的肉眼无法识别,但对人的眼睛伤害特别大,所以,操作时请务必佩戴专业的紫外线防护眼镜,推荐使用LUV-10A紫外线防护眼镜。因B-100AP的紫外线灯点亮30分钟左右灯头表面达到热平衡,表面温度大约在150-200摄氏度,如果无意触碰到,会造成皮肤烫伤。
8. B-100AP的紫外线灯照射时对环境有什么要求?
电源电压需要稳定在220v,周围没有易燃物,保持好环境通风,照射时操作人员时刻注意被照射物体表面变化,切勿远离。周围尽量不要有无关人员,必须在照射现场的人员,佩戴好紫外线防护眼镜,请勿将皮肤裸露在外面。
B-100AP的紫外线灯的操作说明书下载:
B-100 Series Ultraviolet Lamps Operating Instructions
B-100AP HIGH INTENSITY UV LAMPS

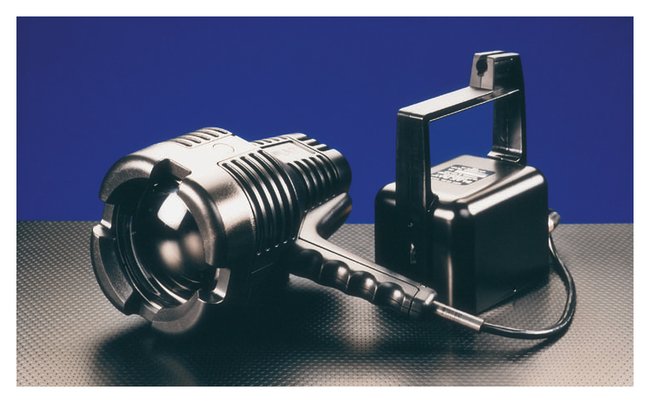

The Blak-Ray B-100 Series high powered UV lamps offer brilliant irradiance for optimum fluorescence. B-100AP lamp (shown) is placed in the transformer base for hands-free operation.
Applications
• Fluorescence Inspections
• Non Destructive Testing
• Leak Detection
• Readmission
• UV Applications Notes
• UV Application List
MAIN FEATURES
The B-100 Series lamps are available in a variety of styles: All "P" series lamps come with the special heat-resistant plastic Cool-TouchTM housing which allows users to handle the lamp head regardless of how long the lamp has been operating. These rugged lamps can be placed face down on a working surface without damage to the filter. The non "P" models are built with an aluminum lamp head.
A 100 watt spot bulb is standard with all models (except the B-100SP); the bulb is rated at 5000 hours.
Self-ballasted bulb included with the B-100SP has an average life of 450 to 2000 hours depending on use patterns
The lamp head connects to the transformer base for hands free use (all models except B-100SP) allowing the lamp head to rotate a full 360°; remove the lamp from the base for additional mobility
B-100AP and B-100AP/R
B-100AP models feature 100 watt longwave UV, Cool-Touch housing and ballast base. At 18 in. (457 mm), the lamp produces a highly intense center of UV irradiance about 5 in. (127 mm) in diameter. Lamp head can rotate 360 degrees when attached to the base for hands-free operation or lamp can be removed from the base. 8 ft primary and secondary cords. For added mobility, select the B-100AP/R which includes 20 ft (6.1m) primary and secondary cords. Uses for these lamps include non-destructive testing and fluorescence inspection.
B-100A and A-100AR
The longwave B-100A is manufactured with a scratch-resistant aluminum housing which connects to ballast base with an 8 foot cord; 8 foot secondary cord is included. The 100 watt longwave UV bulb is excellent for inspection applications. For increased mobility, select the B-100AR which includes 20 ft (6.1m) primary and secondary cords. Uses for these lamps include non-destructive testing and fluorescence inspection.
B-100SP
This 90 watt longwave, self-ballasted lamp is a highly portable, high intensity lamp for automotive leak detection applications. The ballast is built directly into the bulb. The B-100SP features the Cool-Touch housing and an 8 ft. (2.44m) cord.
B-100Y and B-100YP
These models feature a yellow filter which blocks wavelengths shorter than 500nm and produces three strong mercury lines at 543, 574 and 576nm. The high contrast light is produced for fine surface particle detection. Particles down to 10 microns are routinely visible with this lamp. B-100Y is built with the aluminum housing; B-100YP with a plastic housing. These lamps are excellent for semiconductor wafer inspection as most photoresist absorption occurs below 450nm.
UV Source: | 365nm Longwave UV | |
Watts: | 100 Watts (All Models Except B-100SP Which Is 90 Watts) | |
Filters: | B-100Y And B-100YP Include A Yellow Filter | |
Dimensions: |
B-100A: |
Lamp Head 8.5D X 5.5Dia. In. (216 X 140mm) Weight: 11.72lb (5.33kg) Cord Length: 8 Ft. (2.44m) |
B-100AR: |
Lamp Head 8.5D X 5.5Dia. In. (216 X 140mm) Weight: 11.72lb (5.33kg) ,Cord Length: 20 Ft. Primary And Secondary |
|
B-100AP: |
Lamp Head 9.75D X 6Dia In. (248 X 152mm) Weight: 12.5lb. (5.6kg) ,Cord Length: 8 Ft. (2.44m) |
|
B-100AP/R: |
Lamp Head 9.75D X 6Dia In. (248 X 152mm) Weight: 12.5lb. (5.6kg) , Cord Length: 20 Ft. Primary And Secondary |
|
B-100SP: |
Lamp Head 9.75D X 6Dia. In. (248 X 152mm) Weight: 3.14lb. (1.43kg) ,Cord Length: 8 Ft. (2.44m) |
|
B-100Y: |
Lamp Head 8.5D X 5.5Dia. In. (216 X 140mm) Weight: 11.72lb (5.33kg) Cord Length: 8 Ft. (2.44m) |
|
B-100YP: |
Lamp Head 9.75D X 6Dia In. (248 X 152mm) Weight: 12.5lb. (5.67kg) Cord Length: 8 Ft. (2.44m) |
ORDERING INFORMATION
Part Numbers
115V | 230V | Model |
Description |
Intensity 2"/10"(uW/cm2) |
95-0044-22 | 95-0044-02 | B-100A | Longwave UV Lamp, 230 Volts | 21,700/8,900 |
95-0044-03 | 95-0044-04 | B-100A/R | Longwave UV Lamp 20 ft. cords, 115 Volts | 21,700/8,900 |
95-0127-01 | 95-0127-02 | B-100AP | High Intensity 100 Watt Longwave UV Lamp, Cool-Touch Housing, 230 Volts | 21,700/8,900 |
95-0127-06 | 95-0127-07 | B-100AP/R |
High Intensity 100 Watt
Longwave UV Lamp 20 ft cords, Cool-Touch Housing, 230 Volts |
21,700/8,900 |
95-0128-01 | N/A | B-100SP | 90 Watt Longwave UV Lamp, Cool-Touch Housing, 115 Volts | 8,500/1,800 |
95-0044-24 | 95-0044-18 | B-100Y |
High Intensity Wafer Inspection
Lamp, Yellow Filter, 230 Volts |
|
95-0127-03 | 95-0127-04 | B-100YP | High Intensity Wafer Inspection Lamp, Yellow Filter, 100 Watt, Cool-Touch Housing, 115 Volts | |
89-0068-01 | Finger Guard for B-100AP, B-100AP/R | |||
19-0126-01 | Lamp Funnel for B-100AP, B-100AP/R, B-100SP | |||
19-0125-01 | Lamp Visor B-100AP, B-100AP/R, B-100SP | |||
19-0124-01 | Lamp Visor for B-100A, B-100AR | |||
76-0055-01 | Exposure Box for B-100AP, B-100AP/R, B-100YP, B-100SP | |||
19-0158-01 | Lamp Guard B-100A, B-100AR | |||
34-0054-01 | Bulb, Spot | |||
34-0049-01 | Bulb, Self Ballasted B-100SP | |||
38-0009-02 | Filter for B-100Y and B-100YP |
美国UVP公司介绍:
美国UVP公司从1932年开始生产供科研、工业及教育应用的紫外透照灯、紫外手灯等一系列实验室用紫外成像设备,成为紫外影像技术方面的先驱。从1989年开始,UVP率先为科学家们推出了成套的凝胶图像分析系统,广为全世界各大实验室采用。经过多年的应用检验,厂家的不断改进完善,UVP的凝胶图像分析系统以其紧凑的设计,方便的操作,强大的分析软件及低值的运行成本,更高的灵敏度,更完善且全面的功能,成为当今世界销量最多的凝胶图像分析系统。
2013年4月2日 德国耶拿分析仪器股份公司(Analytik Jena)宣布收购了美国成像公司UVP及其欧洲全资子公司Ultra-Violet Products,旨在进一步扩大生命科学业务的产品线,并加强在美洲的业务。
B-100AP高强度紫外灯订货编号:95-0127-01(110v),95-0127-02(220v)
